Steel Picket balustrade – separate element

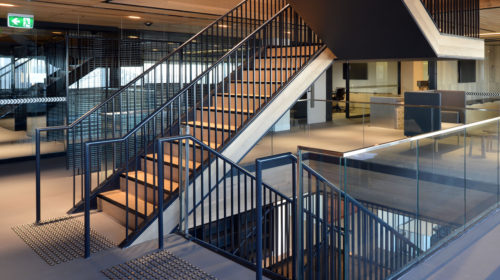

The example here has a flat bar picket with an integrated tube top rail which doubles as the handrail. The balustrade panel is mechanically fixed to the top of the PFC stringer via a continuous flat bar bottom plate, with a defined 10x10shadow line detail at the intersection. This design is suited to narrow staircases where the handrail cannot be inboard of the balustrade.
